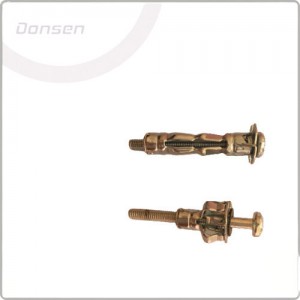

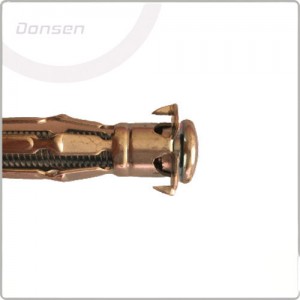

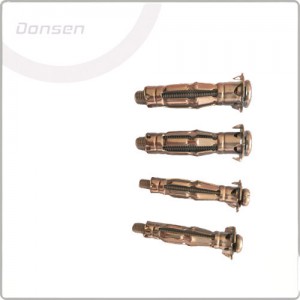

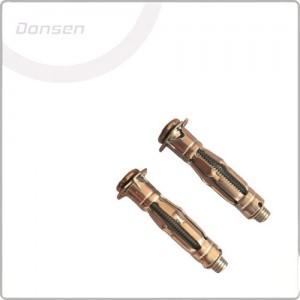

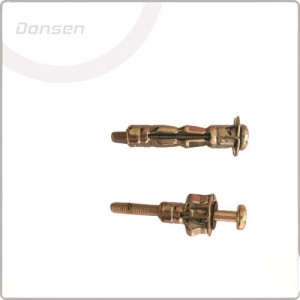

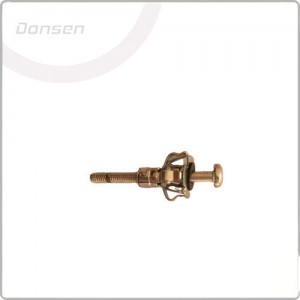

Hollow Wall Anchors with Pan Head Machine Screws

Short Description:

Hollow wall anchors high quality metal cheville, with pan head machine screws, of which function is the same as that of screw. It is used in situations where self tapping screws and expansion screws are not applicable. It could be used in various hollow walls such as plasterboard, light wooden walls and hollow brick walls to solve a lot of hanging problems. It is suitable for fixing of lamps, bookshelves, skirting boards, switches, curtain chutes of hanging cabinets and so on. It also could be used to install heavy objects, LCD TV, wall mounted TV, air conditioner indoor unit, heavy partition, water heater, large picture frame, heavy cabinets etc.


  • Item No.: 020109
  • Sizes available from: M4,M5,M6,M8
  • Material: Carbon Steel
  • Finish: Zinc Plated, Zinc Yellow
  • Product Detail

    Product Tags

    Hollow wall anchors with pan head machine screws is a kind of light duty fixings(Light Duty Fixings (fasteners-ds.com)). The advantage is the movement and replacement of facilities will not be affected during the redecoration process, and special tools can be used for rapid installation without affecting the appearance and surface finish.

    Hollow Wall Anchor Size

    Drilling Diameter/mm

    Thickness of board

    Proof Load

    4x32

    9

    4-9mm

    140kgs

    4x46

    3-20mm

    5x37

    11

    5-13mm

    200kgs

    5x52

    5-18mm

    5x65

    18-32mm

    5x80

    35-49mm

    6x37

    12

    4-13mm

    240kgs

    6x52

    5-18mm

    6x65

    16-32mm

    6x80

    33-49mm

    8x52

    15

    5-18mm

    250kgs

    8x65

    18-32mm

    Hollow wall anchors could be used in various hollow walls such as plasterboard, light wooden walls and hollow brick walls to solve a lot of hanging problems. It is suitable for fixing of lamps, bookshelves, skirting boards, switches, curtain chutes of hanging cabinets and so on. It also could be used to install heavy objects, LCD TV, wall mounted TV, air conditioner indoor unit, heavy partition, water heater, large picture frame, heavy cabinets etc. The advantage is the movement and replacement of facilities will not be affected during the redecoration process, and special tools can be used for rapid installation without affecting the appearance and surface finish.

    Hollow wall anchors can be packed in different boxes, such as plain boxes, white boxes, colorful boxes. Then boxes can be packed in cartons, cartons in pallets. The package (Pack - Donsen International Trading Co.,Ltd. (fasteners-ds.com) )is suitable for shipment by sea, by air and by train.

    Hollow wall anchors can be (1)
    Hollow wall anchors can be (2)
    Hollow wall anchors can be (3)
    Hollow wall anchors can be (4)
    Hollow wall anchors can be (3)
