Container Door Lock parts
Short Description:

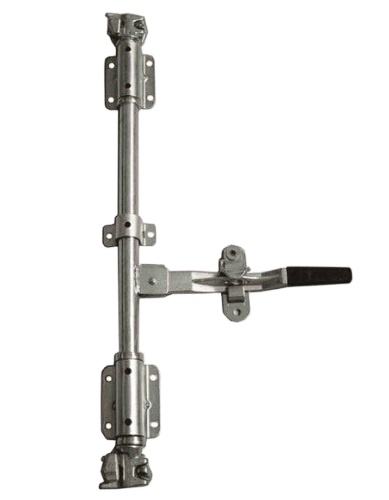

Complete container door lock parts including the following parts
:
| Product Name | ISO standard container door parts-door lock assembly |
| Part No. | per drawing |
| Standard | ISO |
| Specification | This is a complete set of cargo container lock device, this set includes container lock cam, lock keeper, lock handle, lock bracket, lock bush, lock anti-ring, lock hub,lock retainer catch, lock retainer plate, etc. but don’t include the lock tube |
| Material | Steel |
| Weight | 5kg |
| Appearance | Painting and Sanding |
| Package | 1 set per box,300boxes per plywood pallet |
| Detail | NO. DESCRIPTION. Q’TY/SET1 CAM L.H 4
2 CAM R.H 4 3 KEEPER L.H 4 4 KEEPER R.H 4 5 HANDLE 4 6 HANDLE HUB 4 7 RETAINER CATCH 4 8 RETAINER PLATE 4 9 BUSH 4 10 BEARING BRACKET 8 OUTER LARGE 11 BEARING BRACKET 4 OUTER SMALL 12 SPLIT LARGE BUSH 8 13 SPLIT SMALL BUSH 4 14 RIVET 4 15 ANTI-RACK RING 16 16 TUBE 4 ( The bub is not include in lock sets) |
